VLX 100 Pivot Door

VLX 100 Pivot Door in Lauderhill, FL | TruePane Windows & Doors

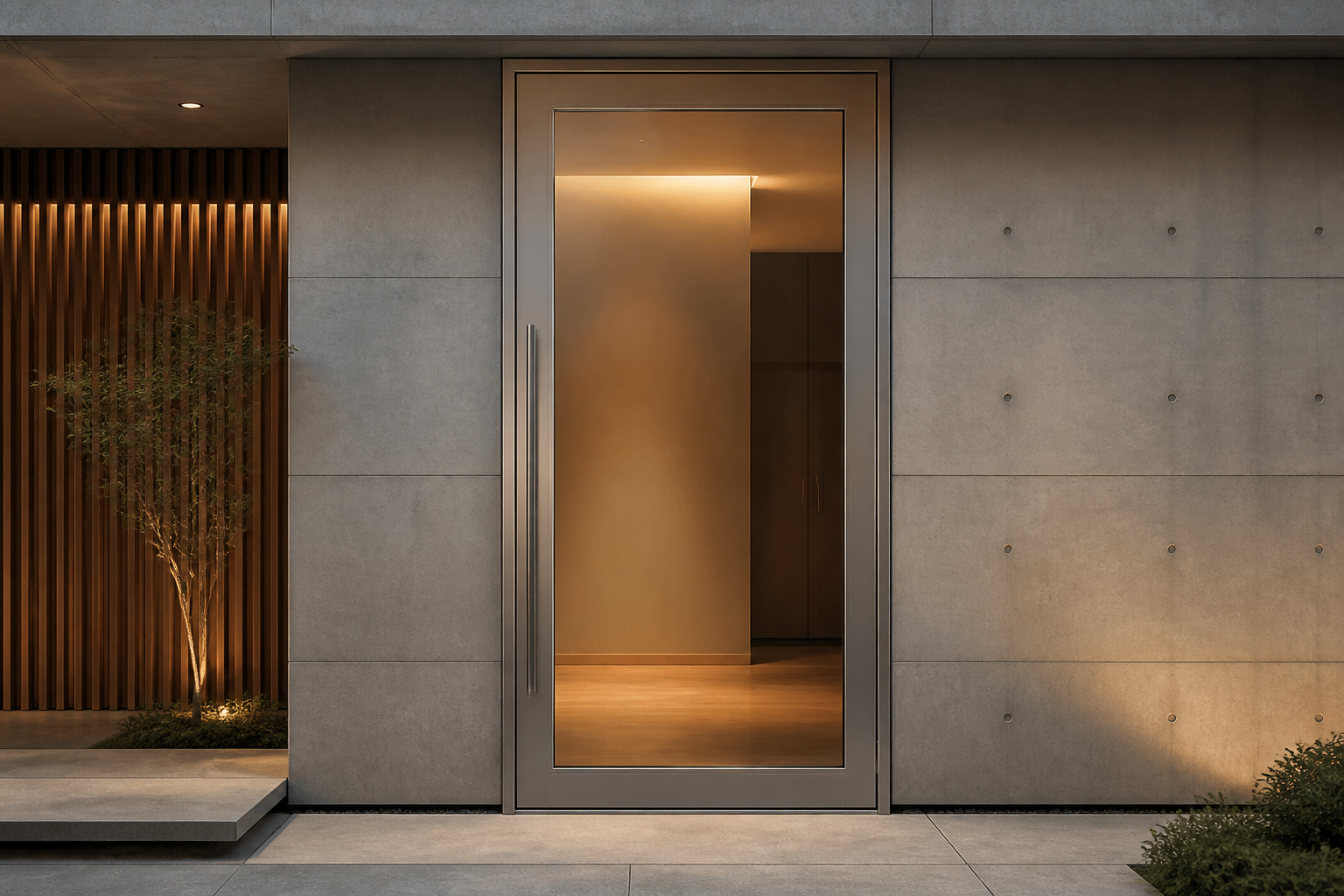

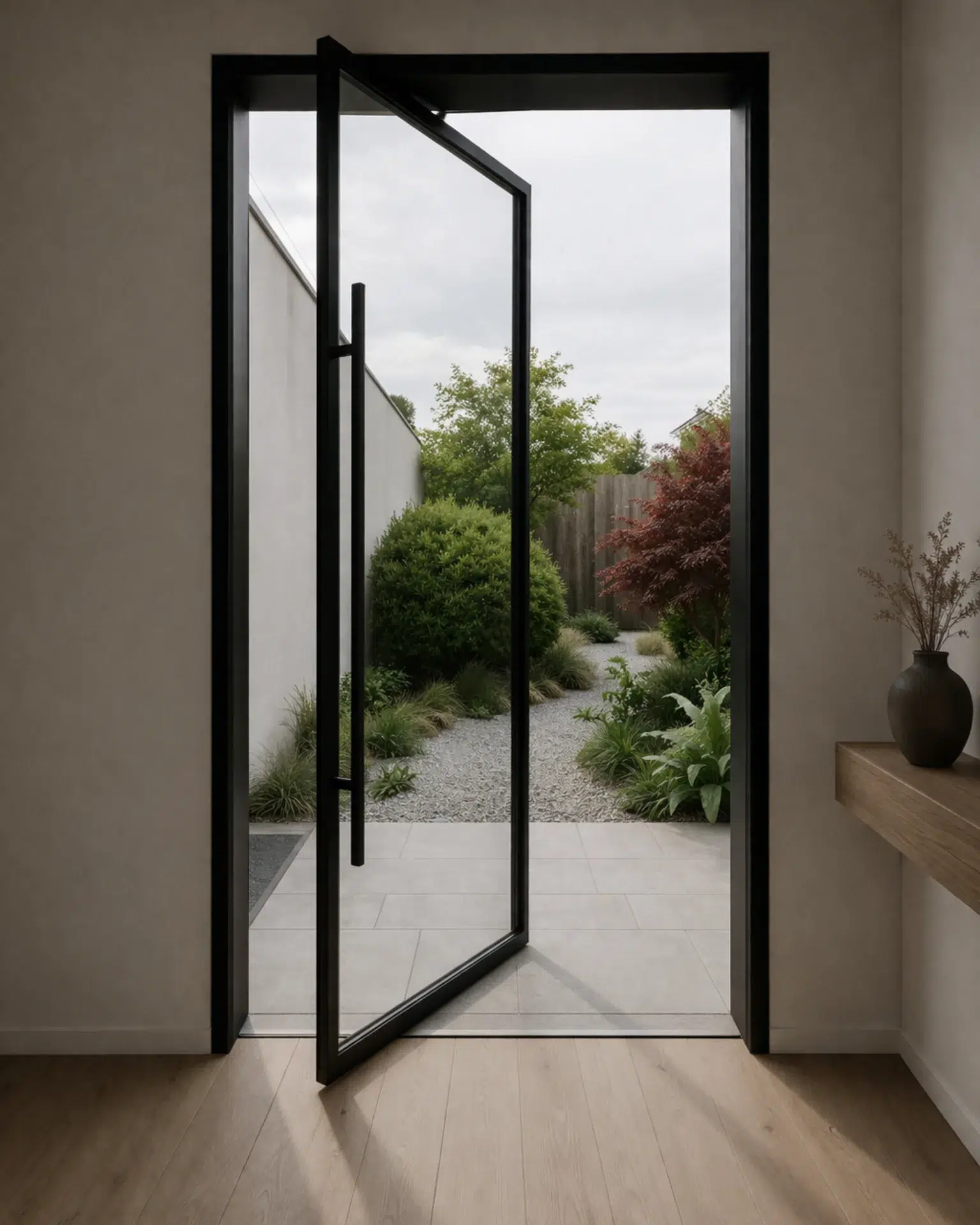

The VLX 100 Pivot Door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of traditional side hinges. Oversized glass panels and a 60-inch by 120-inch maximum span make it the kind of door that changes how a room feels the moment you walk through it. Homeowners across Lauderhill, FL choose this door when they want a true architectural centerpiece, not just an entryway. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get factory-backed product support plus local installation expertise. Call (850) 303-7739 to talk about your project.

Call (850) 303-7739

Product Overview - VLX 100 Pivot Door

The VLX 100 comes from ViewLux’s architectural line, designed for people who want the entry to feel as considered as the interior behind it. The pivot mechanism sits off-center, so the door swings on a vertical axis rather than a side hinge. That changes the physics of a tall, wide entry: the weight distributes through the floor and header instead of pulling on a hinge jamb, which is why this series can carry a panel up to five feet wide and ten feet tall without sagging.

In Lauderhill, we see this door specified most often on modern and transitional builds. Clients in the Inverrary area, St. George, and along NW 44th Street corridor want a front entry that reads as a design decision. The VLX 100’s aluminum frame holds oversized glass cleanly, with a narrow 2.56-inch profile that maximizes glass area without sacrificing structural strength. The 0.098-inch wall thickness on the frame extrusion gives it the kind of stiffness you feel when the door closes; no rattle, no flex, just a solid, weighted stop.

The material choice matters year-round here. Aluminum doesn’t warp in South Florida humidity the way wood can, and it won’t rust like untreated steel. That’s part of why this door performs as well in a rainy August as it does in a dry February. The engineering is quiet. You notice it in the details: how the corner joints seat cleanly, how the glass sits flush, how the door levels perfectly in the opening.

Technical Specifications

The VLX 100 is built around a reinforced aluminum extrusion, 2.56 inches wide with a 0.098-inch wall. That profile gives the frame a slim sightline from the outside while retaining enough mass and rigidity to support panels up to 60 inches wide and 120 inches tall. Here’s how the series breaks down:

• Frame material: Heavy-duty extruded aluminum, 0.098-inch wall thickness
• Profile width: 2.56 inches
• Maximum panel span: 60 inches wide × 120 inches tall
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated (impact-rated option available)
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood
• Operation: Center-axis pivot, floor and header hardware
• Thermal performance: Thermal break technology with NFRC-rated energy values
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 perimeter sealing

Every door is built to order for the opening, so we size each unit after a physical measurement at your Lauderhill property. That eliminates the gaps and shims you get with stock doors incorrectly scaled to a rough opening.

Performance Features

Thermal Efficiency – The VLX 100 uses a polyamide thermal break separating the interior and exterior aluminum faces. That interruption stops heat from migrating through the frame, and the NFRC-rated values for this series reflect real energy performance, not marketing numbers. With a Low-E glass package, the door helps keep cooling costs down during Lauderhill’s long hot season.

Acoustic Performance – Laminated glass and the door’s full-perimeter compression gaskets cut outside noise noticeably. If you live near Commercial Boulevard or the Turnpike corridor, sound control may be the spec you appreciate most. The difference between a standard sliding door and a properly sealed pivot door is something you hear immediately.

Airtightness & Weather Seal – The VLX 100’s weatherstripping runs continuously around the panel and frame. Combined with a threshold that seats against the door bottom, it restricts air exchange far better than a typical hinged door. That matters for comfort, for energy use, and for keeping AC-conditioned air inside where it belongs.

Waterproofing – AAMA 812 low-expansion foam sealant applied at every perimeter joint is part of our standard installation for this door in Lauderhill. South Florida’s driving rain finds any gap that exists. The foam plus a sloped, flashed threshold assembly moves water away from the interior. We test this with direct water spray before we call the job done.

Wind Resistance – This door is wind-load rated for the local climate requirements in Broward County. Lauderhill sits in a high-velocity wind zone, so that’s not a box to check lightly. The frame stiffness from the 0.098-inch wall plus the structural pivot hardware gives the assembly the strength to hold its integrity when pressure drops during storm season.

Security & Hardware – Pivot doors load differently than hinged doors. The hardware sits in the floor and header, which means the door can’t be lifted off side hinges during a forced-entry attempt, a common weak point on standard doors. We pair the VLX 100 with multi-point locks where the frame spec allows, and the laminated glass option adds impact resistance that doubles as a security barrier.

Color & Glass Options

The VLX 100 comes in six finishes, and each one changes the personality of the door completely. Premium Black and Pure White are the two we install most often in Lauderhill; Black against a white stucco facade is a clean, confident look, while Pure White suits coastal-inspired homes that want brightness without ornament. Anodized Silver is a cooler, industrial finish that photographs beautifully in natural light. Bronze and Champagne read warmer, and they pair especially well with earth-toned exteriors and natural stone. Teak Wood is a powder-coat reproduction of timber grain, which gives you the look of a wood pivot door with none of the warping or maintenance concerns in Florida humidity.

On the glass side, Clear is the default for maximum light transfer. Frosted and Obscure options give privacy for entries that face a street or neighbor directly. Low-E coatings cut heat gain while keeping the view. Tempered glass satisfies safety glazing codes, and Laminated glass is what you want if you’re in a wind-borne debris zone or just want a door that resists break-ins with more than a golf ball’s worth of force.

Installation by TruePane Windows & Doors in Lauderhill

Pivot doors are unforgiving. A half-degree out of level shows as a gap at the floor or a door that drifts on its axis. That’s why the install is the product. TruePane Windows & Doors handles every VLX 100 installation with the same sequence, refined across hundreds of openings in Broward County.

We start with a pre-install inspection. The rough opening gets measured, the substrate checked, the water-resistive barrier confirmed before anything goes in. Then the frame is set level, plumb, and square; no shims on the pivot side, full support under the floor hardware, and the header gear positioned precisely so the door swings true. The perimeter is sealed with AAMA 812 low-expansion foam, which fills the joint without bowing the frame or compromising the water barrier. Our work follows AAMA 2400/2410 installation standards, which exist for exactly this reason: an improperly installed pivot door will bind, leak, and eventually fail at the hardware.

Here’s the thing about Lauderhill specifically. The humidity means wood subsills rot. The afternoon downpours mean water management is not optional. And if a door is not installed to manufacturer spec, the warranty is void. That’s not a scare line; it’s in the fine print of almost every premium door warranty. Using an authorized partner like us keeps you covered. After installation, we run a water test on the full assembly, clean the site, and walk you through operation and maintenance.

Frequently Asked Questions - VLX 100 Pivot Door

Get a Quote - VLX 100 Pivot Door in Lauderhill

If you’re considering a pivot door for your Lauderhill home, the next step is simple. Call TruePane Windows & Doors at (850) 303-7739 and we’ll set up a free on-site measurement and quote. You’ll get exact pricing for your opening, a glass and finish recommendation based on your exposure, and a straight answer on lead time. No pressure, just numbers.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partners serving Lauderhill, FL.
