AfterVLX 150 Heavy-Duty Sliding Door in Lauderhill, FL | TruePane Windows & Doors
The VLX 150 Heavy-Duty Sliding Door is a large-span aluminum slider built for openings that standard doors simply can’t handle. We’re talking glass walls up to 24 feet wide, multi-panel configurations, and stainless hardware that won’t quit after a decade of daily use. TruePane Windows & Doors is an authorized ViewLux installation partner in Lauderhill, FL, which means you get factory-backed product knowledge and install work that keeps the warranty intact. If you’re designing a modern addition, replacing a tired patio slider, or building a lakefront home on the east side of Lauderhill, this door deserves a hard look. Call (850) 303-7739 to talk specifics.
Product Overview - VLX 150 Heavy-Duty Sliding Door

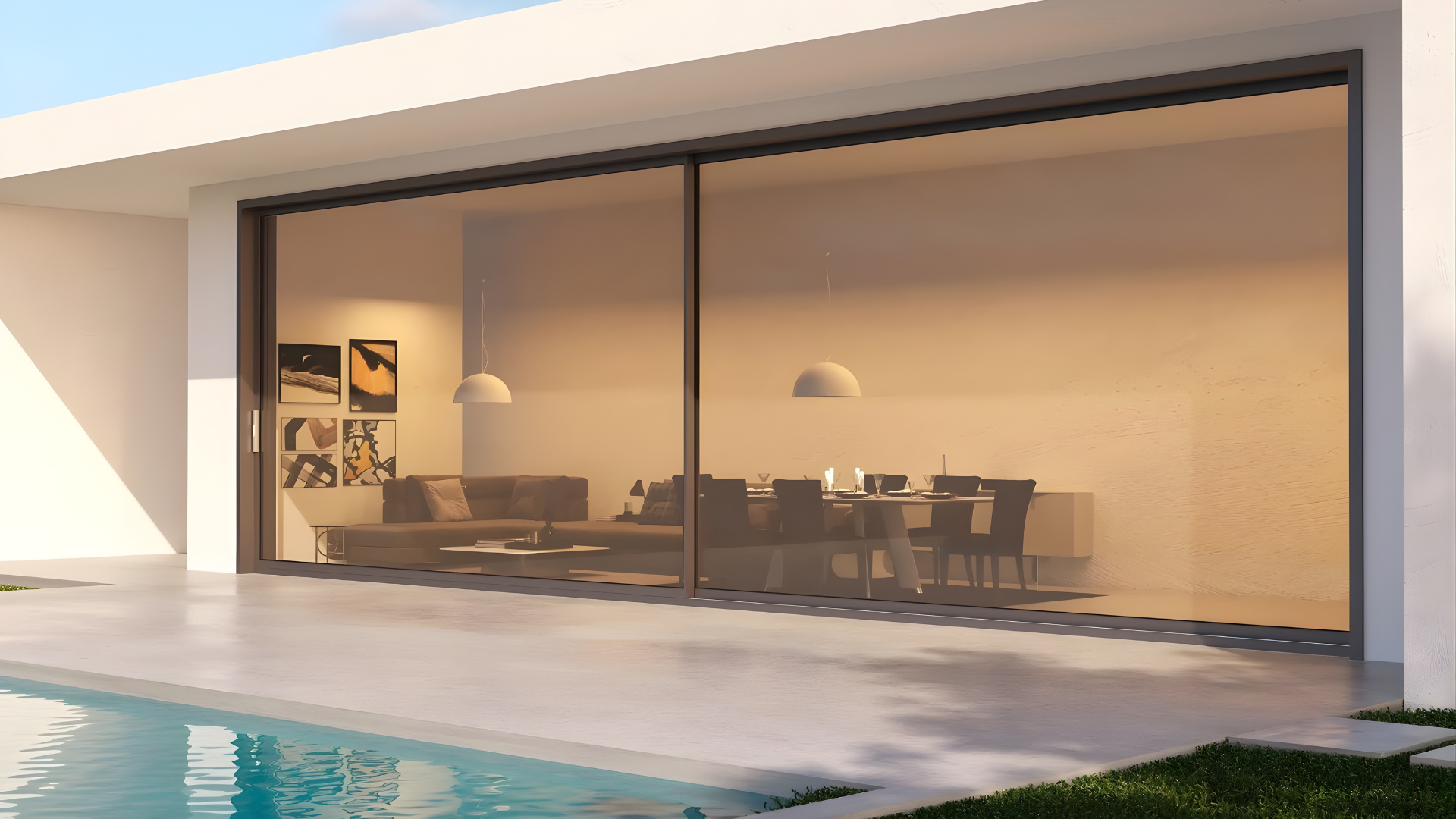

The VLX 150 is ViewLux’s strength-focused aluminum slider, and the engineering shows. The frame is extruded aluminum with a wall thickness of 0.118 inches, which is meaningfully more rigid than the thinner profiles you’ll find on economy sliders. That thickness is what allows the VLX 150 to span up to 24 feet in a single opening, which changes what’s possible for indoor-outdoor living in South Florida. Instead of three separate windows and a cramped door, you get one continuous glass plane that opens your living room to the pool deck.
Profile width runs 2.95 inches, giving the frame enough visual presence to read as architectural rather than utilitarian. The hardware is stainless steel throughout: rollers, tracks, locks, and handles. In our Lauderhill installs, this matters more than buyers expect. Coastal humidity and rain exposure corrode zinc or plated hardware inside three or four years. Stainless steel doesn’t flake, bind, or rust out. The VLX 150 is available in 2-track, 3-track, and 4-track configurations, so you can spec a two-panel slider, a three-panel with one moving leaf, or a multi-panel stacker that opens most of the wall. This is the door we recommend when a client wants a true large-format opening without the maintenance burden of wood or the flex of thin aluminum.
Technical Specifications
Here are the core specs for the VLX 150 Heavy-Duty Sliding Door, in plain terms:
- Frame material: Extruded aluminum, 0.118″ wall thickness
- Profile width: 2.95 inches
- Maximum span: Up to 24 feet wide, depending on configuration and glass package

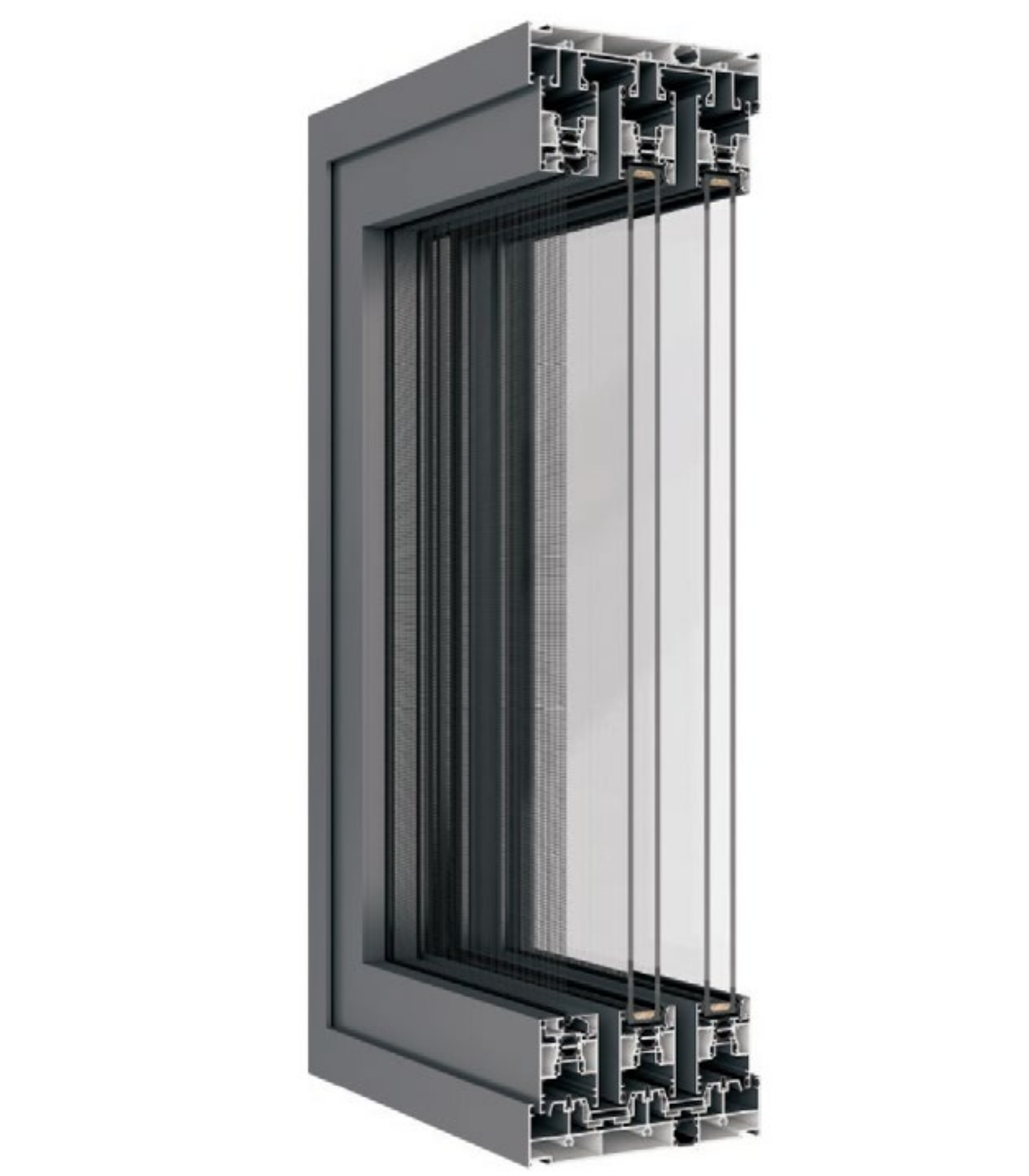

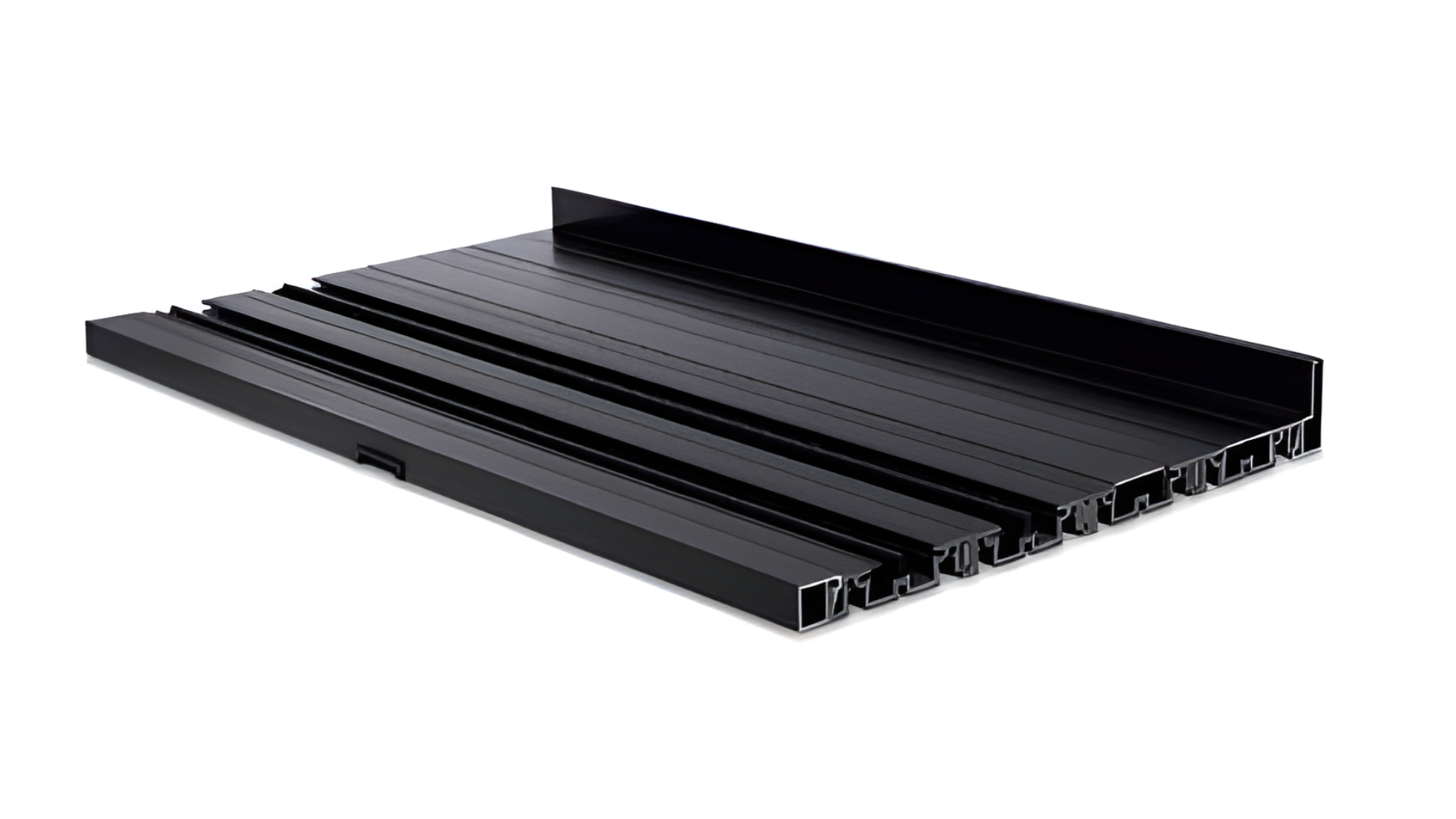

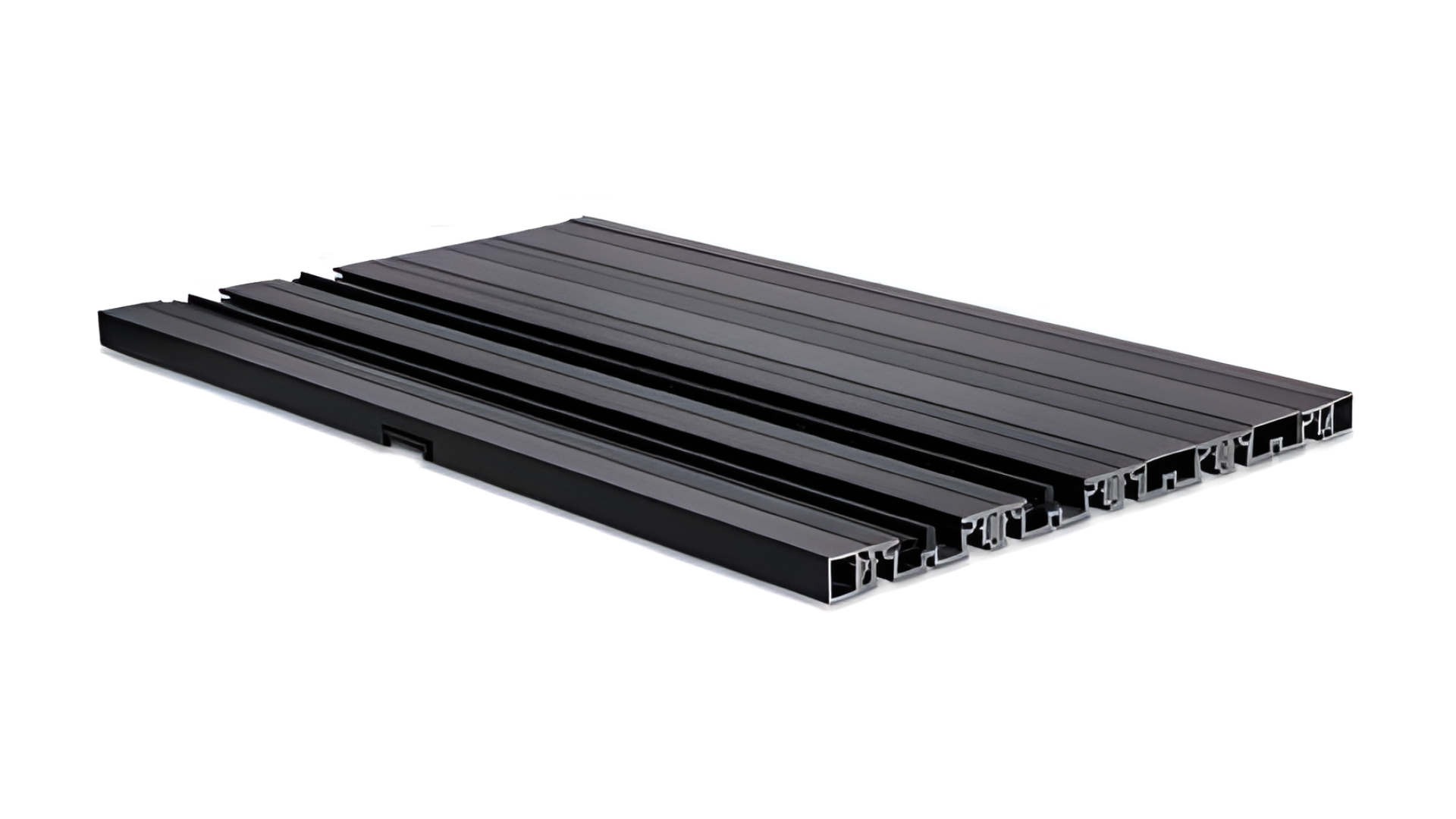

- Track configurations: 2-track, 3-track, or 4-track
- Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Retractable screen or sliding screen
- Thermal performance: Thermally broken frame, NFRC-rated
- Weather ratings: Airtightness, waterproofing, and sound control tested per AAMA standards
Performance Features

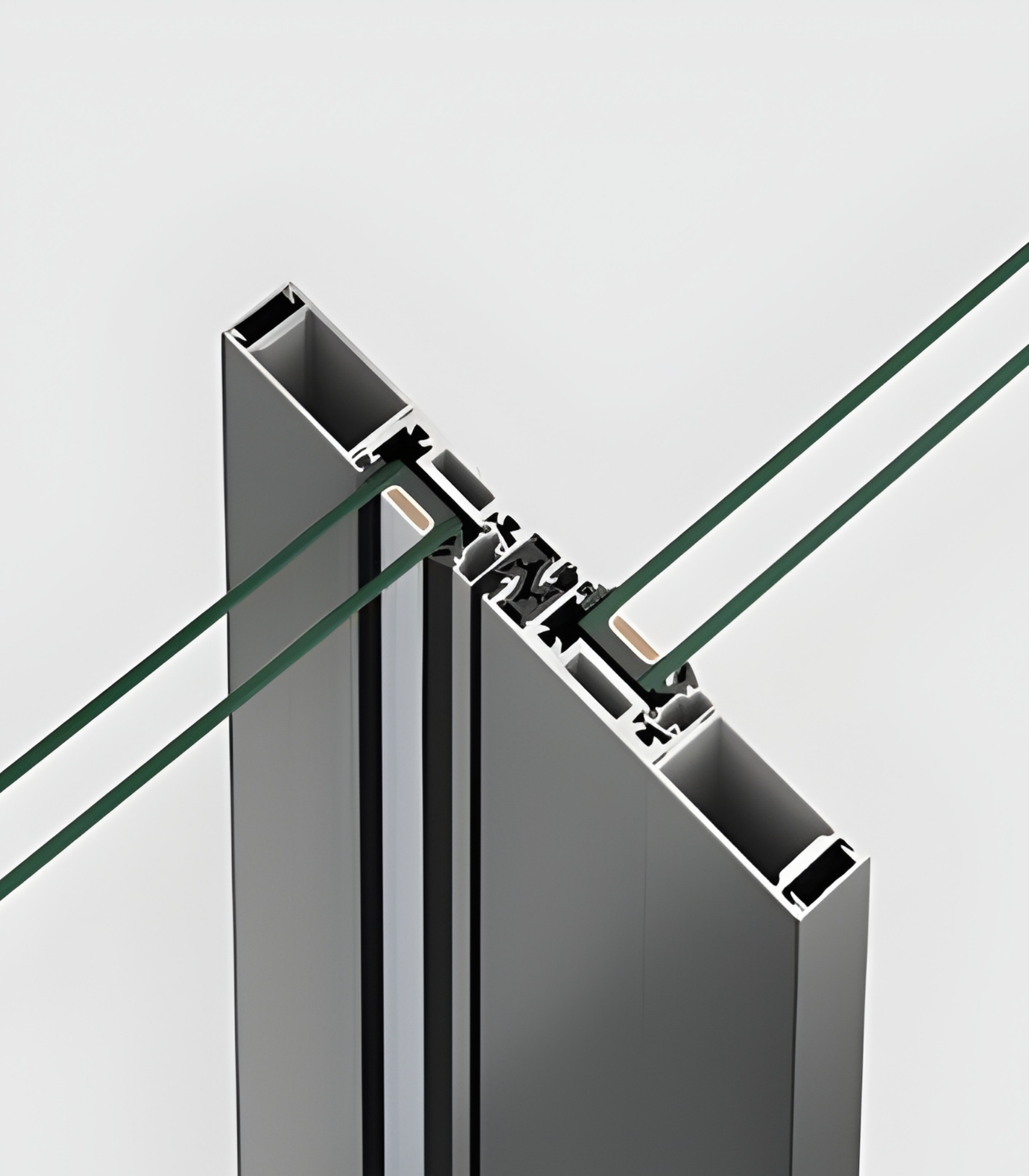

Thermal Efficiency - The VLX 150 uses thermal break technology that separates the interior and exterior aluminum faces with a non-conductive barrier. Aluminum conducts heat aggressively, so without the break, your air conditioning bleeds out through the frame. The NFRC-rated performance on this door keeps cooling costs sane through Lauderhill’s long summers.
Acoustic Performance - If you live near University Drive, the Turnpike, or commercial corridors along Oakland Park Boulevard, road noise is a real factor. The VLX 150’s solid frame construction and laminated glass option cut transmitted sound noticeably. Laminated glass is the single biggest upgrade for sound control, and we recommend it on any Lauderhill home facing a busy street.

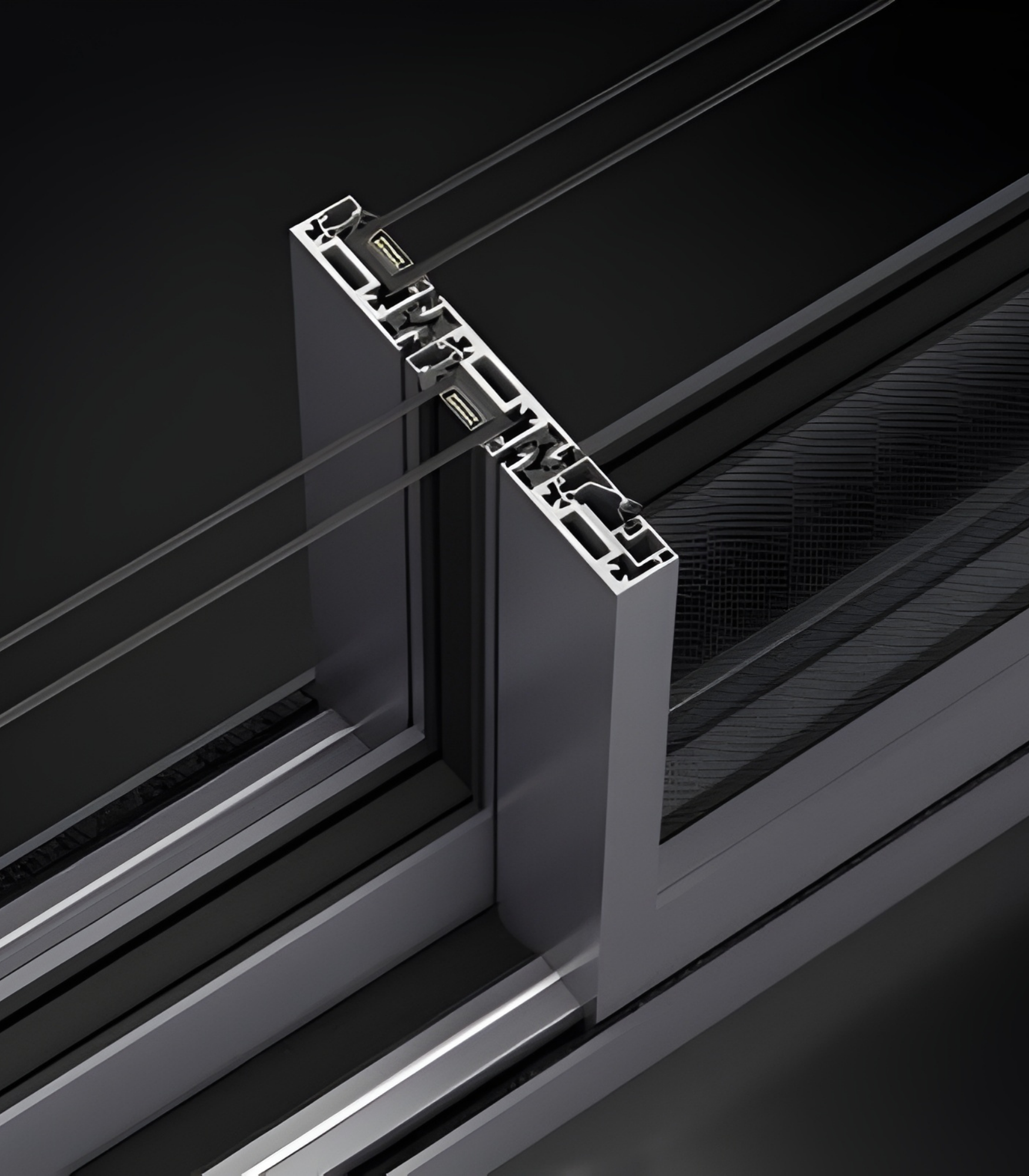

Airtightness & Weather Seal - The door is engineered with a multi-point locking system that pulls panels tight against the weatherstripping when closed. That compression seal is what keeps conditioned air in and humidity out. It’s a difference you’ll feel the first time you close the door and notice there’s no rattle, no whistle, and no give.

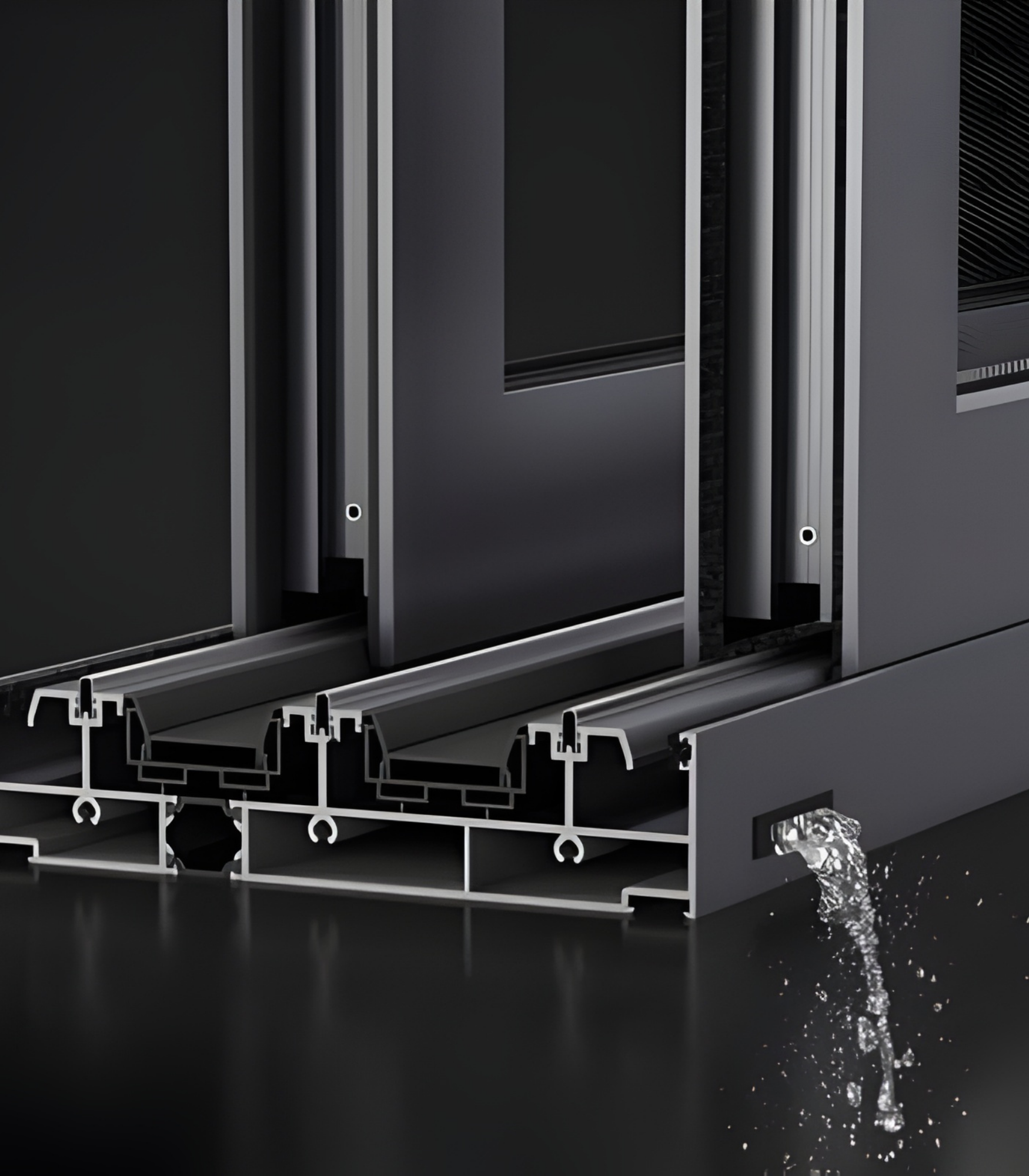

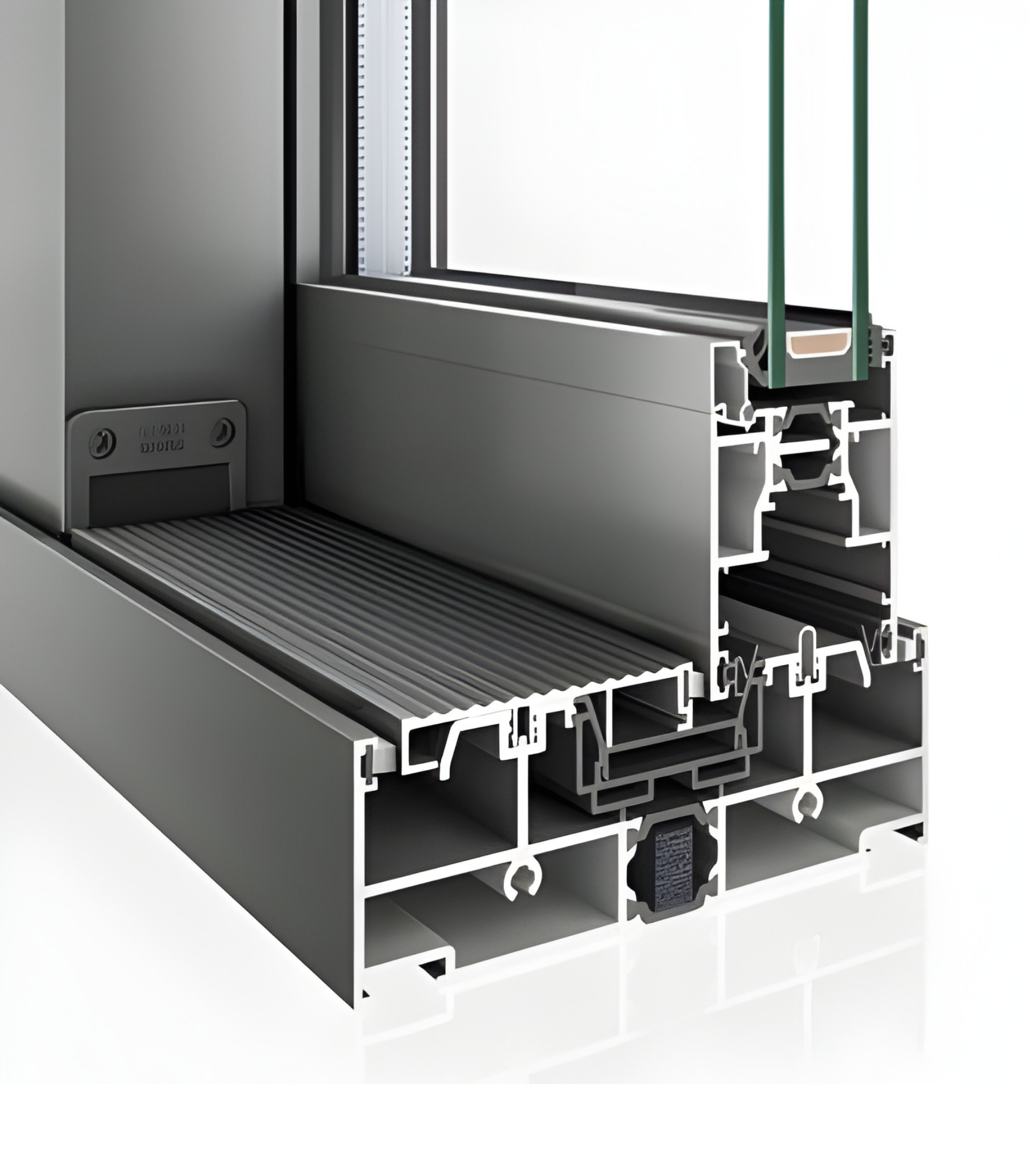

Waterproofing - South Florida gets daily summer storms, and horizontal rain driven by afternoon squalls will find any gap that exists. The VLX 150’s sill design channels water away from the track and out through weep holes before it can reach your flooring. Paired with the AAMA 812 foam perimeter seal we install around the frame, water intrusion stays a non-issue.
Wind Resistance - Lauderhill sits in a high-velocity hurricane zone, which means any large glass opening has to be wind-load rated for local code. The VLX 150 is wind-load rated to meet Miami-Dade and Broward County requirements. Adding impact-resistant laminated glass turns the door from a weak point into an actual protective barrier that can take a storm-driven projectile without shattering.
Security & Hardware - All rollers, tracks, and lock mechanisms are stainless steel, and the multi-point lock engages at multiple heights along the panel. That’s a real deterrent compared to the single-point latch on standard sliders, which can be lifted or jimmied. The VLX 150 closes with a solid, mechanical feel that tells you it’s actually locked.
Color & Glass Options
The VLX 150 is available in six finishes, and each one changes the character of the door. Premium Black is our most-requested finish for modern homes in central Lauderhill, where dark window frames against white stucco is the dominant look. Pure White works well for older Florida ranch homes where a white frame blends with existing windows. Anodized Silver has a raw aluminum appearance that suits commercial storefronts and industrial-style interiors. Bronze and Champagne both lean warmer, and they pair well with terracotta or beige exteriors common in Lauderhill’s established neighborhoods. Teak Wood is a wood-look finish that brings warmth without the rot, warp, and termite risk that comes with actual wood frames in South Florida humidity.
On the glass side, we steer most Lauderhill clients toward Low-E for its heat rejection properties. Clear glass is fine for covered patios and shaded north-facing walls. Tempered is required by code for large glass panels and doors, and it’s included where needed. Laminated glass adds impact resistance and sound dampening, which is the right call on any east-facing opening or home within earshot of a major road. Gray and Black Tint are aesthetic choices that also reduce glare, which matters if the door faces the afternoon sun.
Installation by TruePane Windows & Doors in Lauderhill
How a large-span slider gets installed is just as important as how it’s manufactured. A 24-foot VLX 150 with laminated impact glass is heavy, and it requires a perfectly level and plumb rough opening to operate smoothly for the long haul. We’ve seen manufacturer warranties denied because the track was shimmed sloppily or the frame was racked out of square. That’s what consumers rarely understand: the door itself may have a 10-year warranty, but it doesn’t matter if the install voids it on day one.
Our installation process in Lauderhill starts with a pre-install inspection of the opening. We check the slab for level, verify the header is sound, and confirm the rough opening dimensions against the engineered shop drawings. If there’s a problem, we fix it before the door arrives rather than forcing the door to fit a bad opening. Then we set the frame level, plumb, and square, shimming at specified anchor points per AAMA 2400/2410 standards. Every perimeter joint gets AAMA 812-compliant low-expansion foam sealant - never expanding spray foam from a can, which can bow the frame and ruin panel operation. We finish with a water test on the sill and track before trim goes back up, and we don’t call the job done until the door glides with two fingers and locks solidly.
Lauderhill’s building department does enforce wind-load and impact requirements, and we pull the permits and schedule the inspections so you don’t have to chase anything down. Homes here also deal with high humidity, which is precisely why we insist on the AAMA 812 perimeter seal. It’s a small spec detail that prevents big air and moisture leaks.
Frequently Asked Questions - VLX 150 Heavy-Duty Sliding Door
Custom VLX 150 orders typically run 6 to 10 weeks from the date we lock in your size, glass package, and finish. That lead time varies with factory volume and glass availability, so we recommend starting the quote process early in your project timeline. Call (850) 303-7739 and we’ll give you a current estimate based on your configuration.
Depending on the glass package chosen, the VLX 150 may qualify for the federal energy efficient home improvement tax credit, which applies to exterior doors that meet current ENERGY STAR criteria. Your tax professional can confirm eligibility based on your specific spec sheet. We’ll provide the NFRC documentation you need to submit a claim.
ViewLux provides a manufacturer warranty on the frame, hardware, and glass, with the specific term depending on the product line and components. TruePane Windows & Doors also backs our installation work with our own workmanship warranty. We’ll walk you through exactly what’s covered before you sign, so there are no surprises.
Yes, within the VLX 150’s maximum span of 24 feet. You can configure the opening as a 2-track with one fixed panel and one sliding panel, a 3-track for a wider clear opening, or a 4-track stacker that opens most of the wall. Panel heights, sill styles, screen options, and hardware finishes all get specified to your project. Call (850) 303-7739 for an exact quote - estimates are free.
Aluminum frames need minimal maintenance. Wipe down the frame and track with a damp cloth and mild soap a few times per year, and keep the track clear of sand, leaves, and debris. South Florida’s salt-tinged air can leave residue, so a quick rinse during rainy season helps. The stainless roller assemblies don’t require lubrication, and we’ll walk you through a 5-minute maintenance checklist at the end of your install.
Get a Quote - VLX 150 Heavy-Duty Sliding Door in Lauderhill
We’d rather visit your home, measure the actual opening, and give you a fixed written quote than guess over the phone. If you’re in Lauderhill or anywhere in Broward County and you’re serious about a large-span sliding door that looks as good as it operates, call TruePane Windows & Doors at (850) 303-7739. We’ll walk the project with you, spec the right glass and finish, and schedule a free on-site measurement.
Written by the team at TruePane Windows & Doors, serving Lauderhill, FL with premium window and door installations since 2009.
Six Reasons Homeowners Choose TruePane Windows & Doors
Impact systems engineered to design pressures up to +/-100, matched to your wind zone - your openings hold when the storm arrives.
Low-E insulated impact glass from our manufacturer lines commonly cuts monthly cooling bills 20-30%.
Laminated impact glass shuts out up to 40% of outside noise - traffic, neighbors, weather.
Monitoring services run $30-90 a month. Laminated impact glass resists forced entry around the clock, with no subscription.
Florida homeowners average around 25% savings on the windstorm portion of their policy after protecting every opening - some homes qualify for more.
A full impact package upgrades curb appeal, buyer confidence and appraised value in one project.
Other TruePane Windows & Doors Services
What Neighbors Say About TruePane Windows & Doors

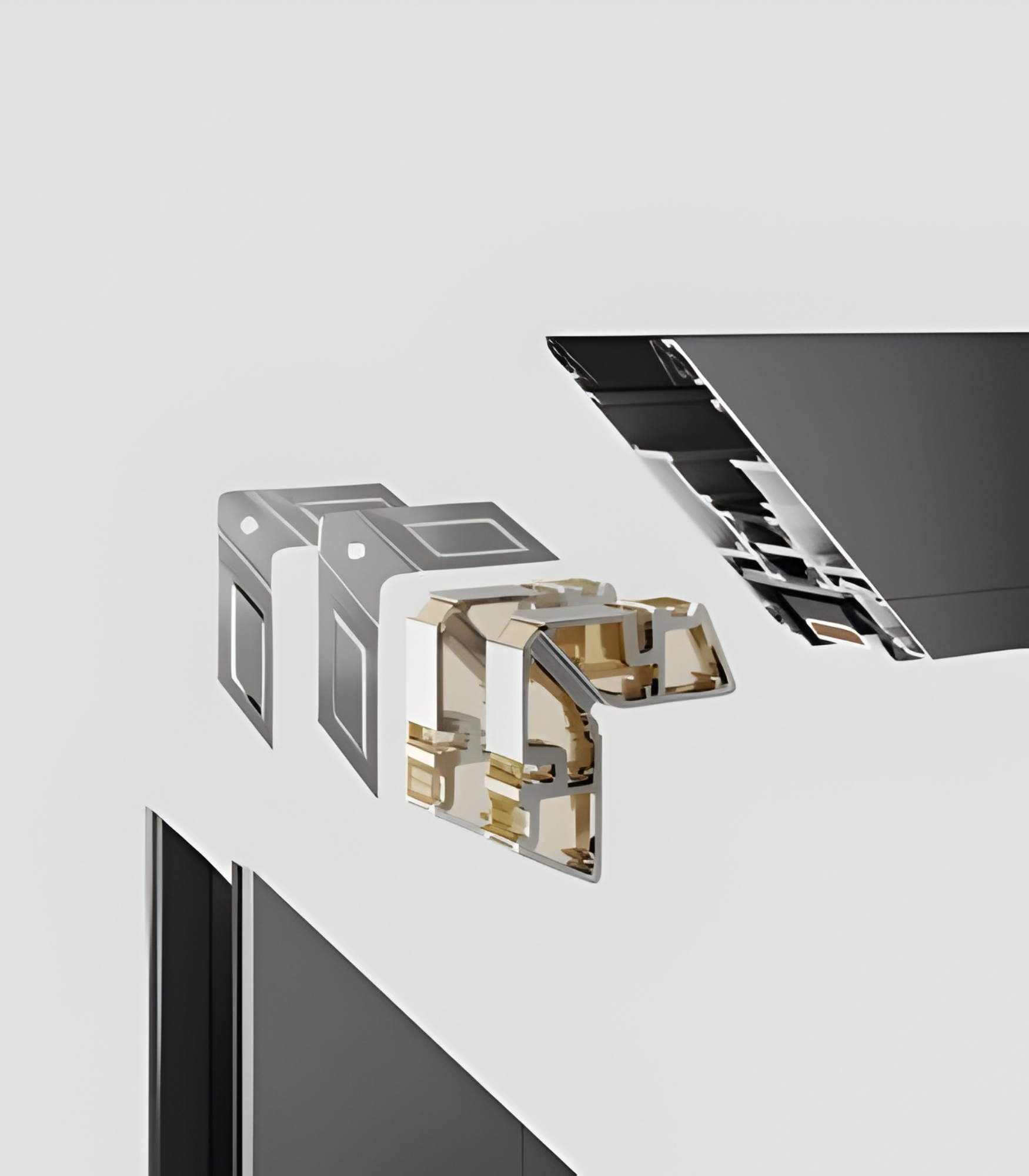

Detailed Images
