Bay and bow windows do something no flat window can: they push your living space outward, pull daylight in from three or four angles, and turn an ordinary wall into a place you actually want to sit. In Lauderhill, where we build for hurricane season every season, the impact-rated versions of these windows matter even more. TruePane Windows & Doors fabricates and installs multi-panel bay and bow configurations in laminated impact glass, engineered to your specific wind zone and the Florida Building Code’s High-Velocity Hurricane Zone requirements. We’ve installed these across Lauderhill on homes from Inverrary to the Falls, and every project starts with a free on-site measurement. Call (850) 303-7739 to schedule yours.

Call (850) 303-7739

Product Overview - Bay & Bow Windows

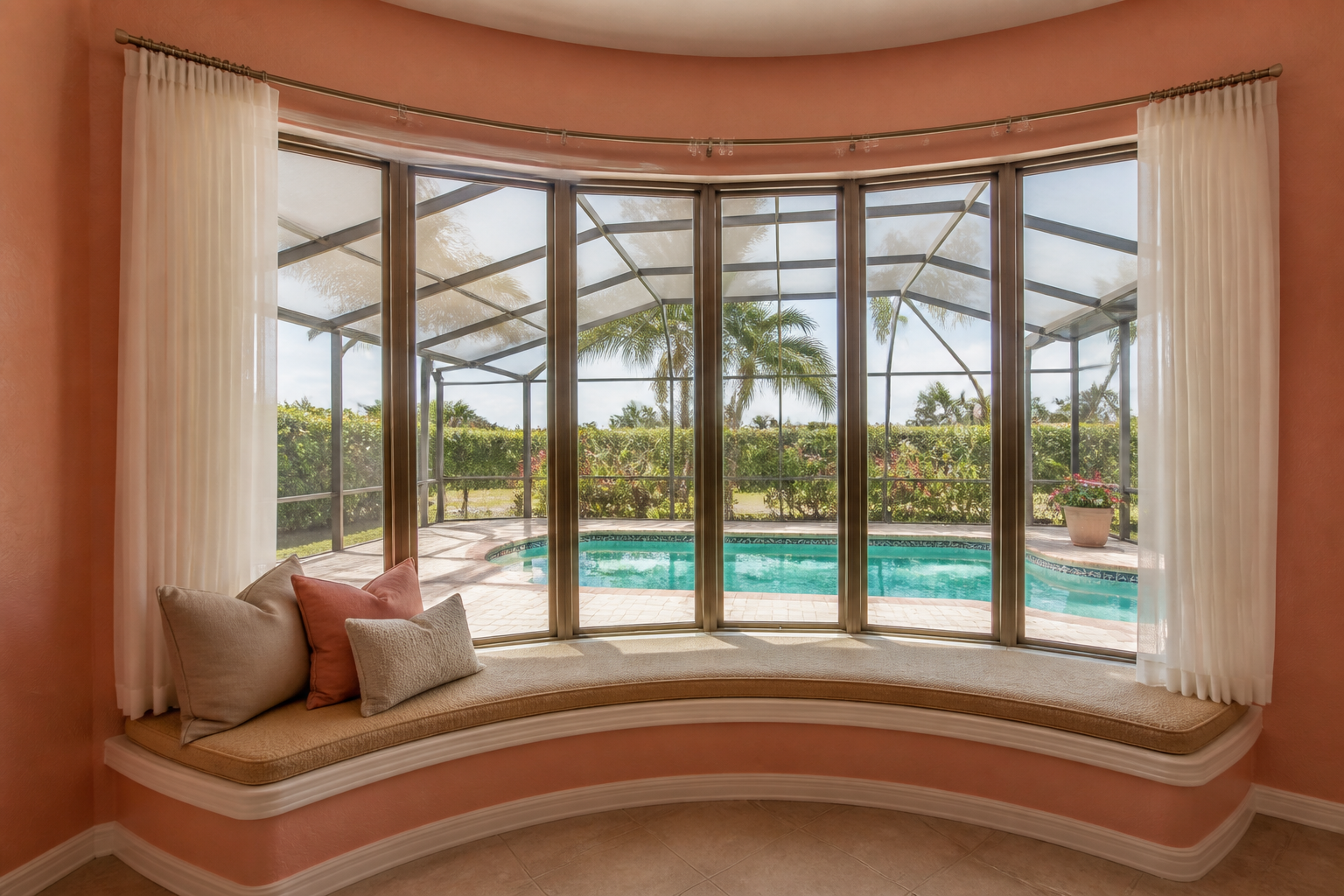

A bay window is typically a three-panel unit: a large fixed center window flanked by two operable or fixed side panels set at angles, usually 30 or 45 degrees. A bow window uses four, five, or even six narrower panels arranged in a gentle arc. Both project outward from the exterior wall, creating a small alcove inside that can hold a breakfast nook, a reading bench, or a plant shelf. That projection is what gives you added interior square footage and panoramic sightlines that a standard picture window can’t match.

In Florida, the challenge is making that beautiful projection survive a storm. The frame has to carry laminated impact glass across multiple panels, each transferring wind load to the rough opening without flexing, leaking, or letting the glazing pull free. TruePane Windows & Doors fabricates these units in aluminum and vinyl, matched to the architectural language of your home and the design pressure your wind zone demands. We work with PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, so we can select the right frame profile and glazing package for your opening, your elevation, and your exposure. These aren’t stock units pulled off a shelf. Every bay and bow configuration is custom fabricated to the opening we measure on site.

What you get is a window that behaves like a structural component, not a decorative add-on. That matters when a storm rolls through Lauderhill and the wind tries to find the weakest point on the wall.

Technical Specifications

Here’s how we build a bay or bow window that holds up. The specs below reflect the options we offer through our manufacturer lines, always matched to the requirements of the opening.

• Frame materials: Aluminum or vinyl. Aluminum carries larger spans and suits modern and mid-century lines. Vinyl delivers strong thermal performance and a clean, painted look without the maintenance cycle.
• Maximum size: Custom fabricated to the opening. We don’t force your wall into a standard catalog size. We measure the rough opening, confirm the projection you want, and build to it.
• Glass options: Laminated impact glass with a PVB interlayer, Low-E insulated glass, tinted glass, or clear glass. Low-E and tinted options can be combined with the impact laminate for both storm protection and solar control.
• Finish options: White, Almond, Bronze, Black, and Tan. These are factory-applied finishes, not site paint, so they hold color through Florida’s UV exposure.
• Sill options: Standard sill or seat/shelf sill. The seat sill gives you a deeper interior ledge, the kind that turns a bay into a breakfast nook. The standard sill keeps the projection tighter to the exterior plane.
• Design pressure: Matched to your wind zone, up to +/-100. We never push a unit beyond what the engineering supports.
• Compliance: Miami-Dade NOA and Florida Product Approval numbers available per configuration, engineered to FBC HVHZ requirements.

Hurricane & Compliance Performance

This is the section that matters when you’re buying windows in Lauderhill, not just shopping for them. Every claim below is tied to how these units are engineered and how TruePane Windows & Doors verifies compliance before your permit package goes out.

How Bay & Bow Windows Hold Up in a Hurricane

Laminated Impact Glass
The glass package uses a PVB (polyvinyl butyral) interlayer sandwiched between two panes. When debris strikes, the glass may crack, but the interlayer holds the fragments in the frame, keeping the building envelope sealed. That’s the difference between storm damage and storm failure. For bay and bow units, every panel in the assembly carries this laminate, not just the center fixed lite.

Miami-Dade NOA / Florida Product Approval
Each bay and bow configuration we sell carries a Miami-Dade Notice of Acceptance or Florida Product Approval number. These are issued per configuration, meaning the exact combination of frame, glass, size, and projection you choose has its own approval documentation. We verify the numbers on your specific quote, and we include them in your permit submittal. For any home within a HVHZ jurisdiction, these approvals are non-negotiable for both the permit and the inspection.

FBC/HVHZ Compliance
The units are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. In practical terms, that covers how the frame is joined, how the glass is set, how the unit anchors to the rough opening, and how it handles cyclic wind loading. Lauderhill sits inside this requirement zone, so every bay and bow window we install must clear this bar, full stop.

TAS 201 / TAS 202 / TAS 203 Testing Context
HVHZ-rated products are tested under a protocol family that includes TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. The testing context matters because it replicates what actually happens in a storm: a 2×4 or roof tile slams into the glass, then the wind hammers the unit with pressure and suction cycles for hours. If the assembly passes, it gets its product approval. If it doesn’t, it doesn’t ship. We only sell units that pass.

Design Pressure for Your Wind Zone
Design pressures are matched to your wind zone, up to +/-100, never higher. The plus figure represents positive pressure pushing against the window. The minus figure represents suction pulling it outward, which is often the more dangerous force on a projecting bay or bow. We calculate the required DP based on your specific Lauderhill address, the elevation of the opening, and the exposure of the wall. No generic ratings, no guesswork.

Energy Performance
Low-E and insulated glass options are available for the laminated impact package. That means you can have storm-rated glass that also cuts solar heat gain on the east and west walls where Florida sun hits hardest. The Low-E coating sits inside the laminated assembly, so the energy performance doesn’t come at the expense of impact resistance. Tinted glass offers another layer of glare and heat control for rooms with full afternoon exposure.

Color & Glass Options

The finish you choose should do two things: fit the architecture you already have, and hold up under the South Florida sun. White and Almond are the two most common choices on Lauderhill’s mid-century ranch homes and 1980s construction, where they blend with stucco walls and existing trim. Bronze and Black read more contemporary and work beautifully on the Mediterranean and modern homes around Inverrary, especially when paired with dark roof lines or black window surrounds. Tan splits the difference, a warmer neutral that suits earthy exterior palettes and Spanish-inspired elevations.

On glass, think about what each panel is actually doing. The center fixed lite of a bay is your view, so clear glass keeps it honest. The side panels and any operable vents might benefit from Low-E insulated glass if they catch direct morning or afternoon sun. Tinted glass is the quiet performer for rooms that get punishing western exposure, cutting glare without changing the look of the home from the street. Your TruePane rep will walk through the combinations on your specific plan, because the right glass in the right panel is what makes the window comfortable to live with.

Installation by TruePane Windows & Doors in Lauderhill

Here’s the uncomfortable truth about bay and bow windows in hurricane country: the product approval means nothing if the installation is sloppy. The NOA and Florida Product Approval documents certify the manufactured unit. They do not cover how the unit is anchored, flashed, and sealed into your home’s rough opening. That part is on us, and it’s where we earn our reputation in Lauderhill.

Every bay or bow installation starts with a pre-install inspection of the rough opening. We check the framing, the header support (a projecting bay puts real cantilever load on the wall), and the condition of the existing water barriers. Then we set the unit level, plumb, and square, following AAMA 2400/2410 practice for the installation of windows and sliding glass doors. That is the standard that governs how the product should be installed to maintain its structural and weather performance.

We seal the perimeter with AAMA 812 low-expansion foam and compatible perimeter sealant. That foam does two jobs: it creates an air seal and a drainage plane that directs water away from the opening. Then we complete a final water test on the installation before we clean up and close out. If your project is in a HVHZ jurisdiction, we prepare and submit the product approval documentation for your permit, and we make sure the installation passes inspection with those documents on record.

Improper installation compromises the rated system, full stop. A window that’s racked a quarter inch out of square won’t shed water the way it was tested to. A unit with gaps in the perimeter seal will fail water intrusion long before the glass ever gets tested by a storm. That’s why we don’t sell these windows as a box you pick up. We sell them as a system we measure, fabricate, permit, install, and stand behind. In Lauderhill, with our exposure to coastal wind patterns and our position inside the HVHZ, that’s the only way a bay or bow window should go into a wall.

Frequently Asked Questions - Bay & Bow Windows

Get a Quote - Bay & Bow Windows in Lauderhill

If you’re ready to see what a bay or bow window would cost on your home, start with a measurement. It’s free, takes about an hour, and it gives you real numbers instead of catalog guesses. Call (850) 303-7739 to schedule your on-site measurement and get a written quote for your Lauderhill project. We’ll bring the product approvals, the wind zone data, and the answers to your questions. You’ll bring the wall. Let’s see what fits.

Written by the team at TruePane Windows & Doors, serving Lauderhill, FL and surrounding Broward County communities.
